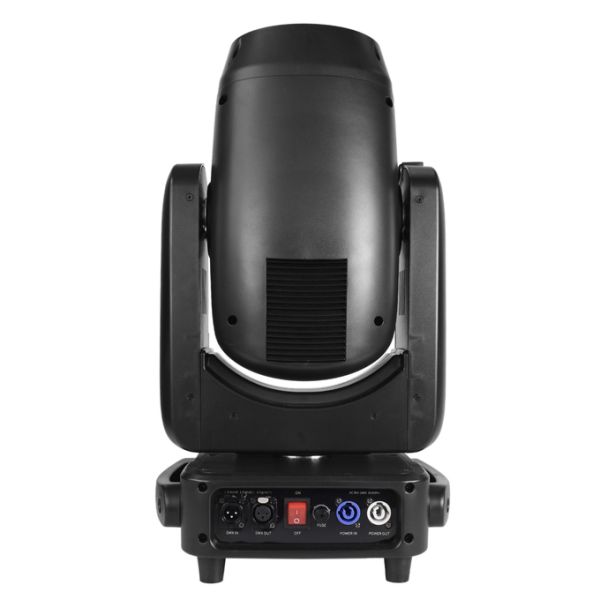

Beam 380 Moving Head Light 380w Beam 20R Dmx512 Sharpy Disco Dj Effect Stage Lights
[Features]
The Beam 380 Moving Head Light is a high-powered lighting fixture designed for professional stage, disco, and DJ applications. This fixture, often compared to the popular Sharpy model, is engineered to produce a sharpy, intense beam of light that can create dynamic effects on stage.
Here are some of the key features and uses of the Beam 380 Moving Head Light:
-380W Lamp: The powerful 380W Osram lamp generates a bright and focused beam that can be seen even in large venues with significant ambient light.
- DMX512 Control: The fixture is equipped with DMX512 control, which allows for intricate programming and synchronization with other DMX-compatible lighting and effects in a show.
- Moving Head Functionality: The moving head feature enables precise control over the direction of the beam, with pan and tilt functions that can be automated or manually controlled for dynamic lighting effects.
- Sharpy Disco DJ Effect: The Beam 380 is well-suited for disco and DJ environments where sharp, defined beams and dynamic light shows are desired to energize the crowd and enhance the overall experience.
- Built-in Effects: Many models include built-in features like color wheels, gobo wheels, and prisms to add layers of visual effects to the light output.
- Versatile Applications: The Beam 380 Moving Head Light is versatile enough for use in theaters, concert halls, nightclubs, and outdoor events.
When using the Beam 380 Moving Head Light, it's important to follow proper installation and safety guidelines. This includes ensuring the fixture is securely mounted, properly earthed, and that all power and DMX cables are safely managed to prevent accidents. Regular maintenance is also recommended to ensure the longevity and optimal performance of the fixture.
[Specification]
| Wide Voltage | AC100-240V,50/60Hz |
| Source | OSRAM lamp 371W |
| Source Lifetime | 3000 Hours Long-life |
| Optical | combined optical lens |
| Dimmer | 0-100% linear |
| Beam Angle | 0-3.8° |
| Cooling System | Adopt Axial Silent Fan To Enhance Cooling |
| Channel | 16CH |
| Color | 14 colors + white light |
| Fixed Gobos | 13 fixed gobos + 4 glass gobos + white |
| Prism System | 8 liner prism + 24 prism, each prism can be rotation |
Voltage: AC90V-240V 50HZ-60Hz
Power: 500W
Bulb: 371W Osram Lamp
DMX channel: 16CH
Optical: combined optical lens
Working mode: DMX512 control, Auto mode, master/slave mode
Dimming: 0-100 dimming
Strobe: Super fast strobe effect (1-10 times per second)
Color: 14 colors + white light
Gobo: 13 fixed gobos + 4 glass gobos + white
Prism:standard 8 liner prism + 24 prism, each prism can be rotation
Beam angle: 0-3.8 degrees
With Frost effect + Rainbow effect
Motor: Consisting of a precision three-phase stepper motor controlled by a built-in microprocessor.
Material: Aluminum, copper, steel, plastic
Pan/Tilt movement: 540˚/270˚,
Working environment :-20 degrees ~ 50 degrees
Protection level: IP20
Product size: 33*27*57CM
N.W :16.5kg
